Integrated Power Ethernet RS485 and Pneumatic Rotary Union for Industrial System

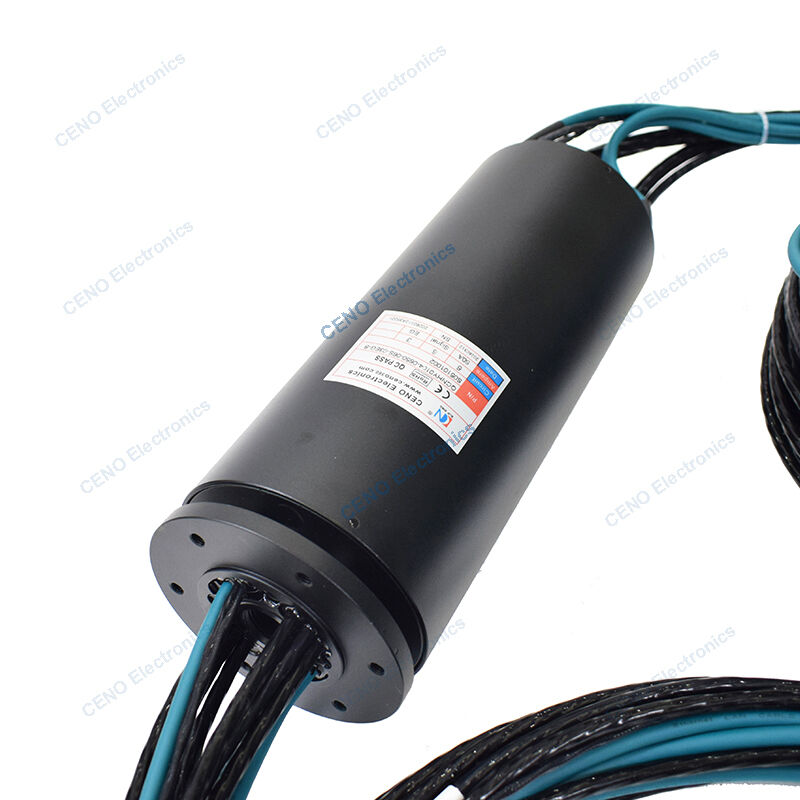

QCNHY0104-0650-06S-03EG-B is integrate slip ring with Power, RS485, Ethernet Signal and 1 channel Air Rotary Union. Electric slip ring and pneumatic or hydraulic rotary unions combined slip ring is designed for some special applications that require both electric ring and pneumatic or hydraulic rotary unions. CENO takes its own technical advantages to developed this kind of slip ring, which is more convenient for users in installation and operation. For more information please contact us.
Features
u Different sealing forms be selected according to different applications
u Stable performance, long life
u The electric slip ring part can integrated current and various signals
Applications
u Chemical & pharmaceutical
u Food processing
u Laser cutting machinery
u Filling machinery
u Medical equipment
Optional
u Circuit, Voltage, Current
u Channels & air pressure
u Contact / Housing Materials
u Protection grade
u Working speed & temperature
Specification
|
QCNHY0104-0650-06S-03EG-B Specification
|
|
Current & Circuits
|
6 * 50A; 4 * Signal; 1 * RS485 Signal; 3 * 1000M Ethernet
|
|
Rating Voltage
|
0 ~ 220 VAC/VDC
|
|
Dielectric strength
|
≥1000VAC@50Hz; ≥300VAC@50Hz
|
|
Isolation resistance
|
≥500MΩ@500VDC;≥100MΩ@100VDC
|
|
Contact resistance wave
|
≤ 30mΩ
|
|
Working temperature
|
-20°C~+60°C
|
|
Working humidity
|
60 %RH
|
|
IP protection grade
|
IP51
|
|
Operating speed
|
0~100rpm
|
|
Outer diameter
|
Ø105mm
|
|
Contact material
|
Gold to gold
|
|
Housing material
|
Aluminium Alloy
|
|
Rotary Union
|
Parameters
|
|
Channels
|
1 * Air
|
|
Pressure Max
|
1.0MPa
|
Outline Drawing
Remark
Integrated slip rings are a must-have for machinery that requires both electric power and pneumatic or hydraulic transmission. These slip rings consist of a pneumatic rotary union and a rotary signal joint, which combine to give you 1 channel for air and 50 circuits for a signal collector.
The benefits of an integrated slip ring are many. First off, it simplifies the wiring and installation process for the end user. With just one assembly, they get the best of both worlds. Instead of having to install separate slip rings for power and transmission, they can now rely on a single integrated slip ring. This not only saves time but also reduces the complexity of the machine as a whole.
One other benefit is that an integrated slip ring helps reduce the number of points of potential failure. Instead of having to deal with multiple components, only one integrated slip ring is needed. This means fewer potential points of failure, which in turn means a more robust and reliable machine.
Another advantage of an integrated slip ring is that it offers enhanced operational flexibility. With one assembly, users can rotate and transmit simultaneously without any loss of signal or pressure. This is especially useful in applications where the machine is required to rotate while at the same time delivering air or fluid.
In conclusion, integrated slip rings provide machinery designers and operators with a reliable, easy to install, and versatile solution for transmission coupled with power requirements. With a single assembly combining air and signal collector channels, integrated slip rings are a convenient and efficient option for any machine application where reliability and flexibility are a top priority.
