Low Temperature Integrate Power RF Slip Ring with Radio Frequency Rotary Joint

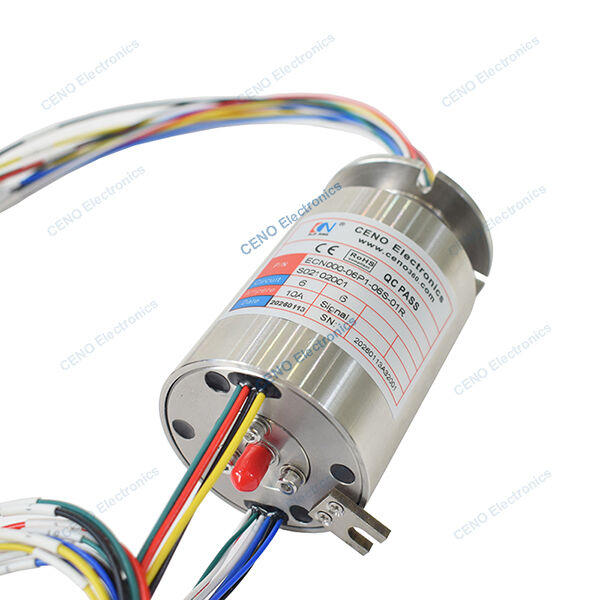

ECN000-06P1-06S-01R is CENO integrate slip ring combine circuits power and 1 channel RF with frequency DC~30GHz that suit for environment from -55°C to +85°C. CENO Integrated Slip Rings are a multi-functional rotary connect solution that highly integrates various transmission modules such as power slip rings, forjs, RF rotary interfaces, and hydraulic/pneumatic channels. They are specifically designed for the simultaneous rotary transmission of electricity, light, signals, and fluids/gases in complex systems. For more information please contact us
Specification
| ECN000-06P1-06S-01R Specification |
| Current & Circuits |
6 * 10A; 6 * Signal |
| Rating Voltage |
0 ~ 240 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC |
| Contact resistance wave |
≤ 10mΩ |
| Temperature |
-40°C~+70°C(W); -55°C~+85°C (S) |
| Working humidity |
60 %RH |
| IP protection grade |
IP61 |
| Operating speed |
0~60rpm |
| Outer diameter |
Ø56mm |
| Contact material |
Precious Metal |
| Housing material |
Stainless steel |
| RF |
Parameters |
| Channel |
1 |
| Frequency range |
DC-30GHz |
| Power (18GHz) |
20w@18GHz |
| VSWR, max |
1.35@DC~8GHz;
1.75@DC8~18GHz;
2.5@DC18~30GHz
|
| VSWR WOW, max |
0.15 |
| Insertion loss, max |
0.15dB |
| Phase 360 change, max |
1.5dB |
Features
1 Optional RF channels be up to 8
2 Power Circuits 1 - 300 optional
3 Stable performance, variety functions
4 Suit low temperature -55°C~+85°C
5 Install easy & Free maintenance.
Applications
1 Radar Antenna
2 HD Video
3 Satellite earth station
4 Transmission equipment
5 Medical equipment
Optional
1 Circuit, Voltage, Channels
2 Frequency range
3 Structure
4 Protection grade
5 working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
