Integrate electric power & radio frequency slip ring with rf rotary joint

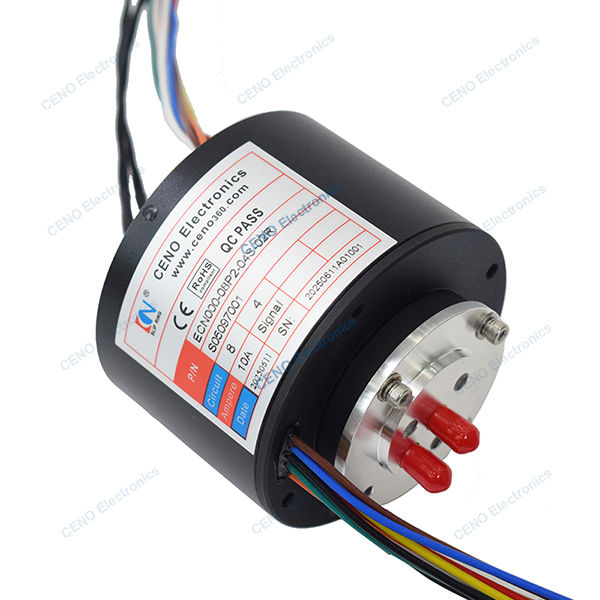

ECN000-08P2-04S-02R is CENO integrate slip ring combined circuits electric power and 2 channels RF signal that can be used in medical equipment - CT Scan machine. CENO works with many CT system manufacture to provide reliable large diameter slip ring solutions. Our experienced engineers work with you every step of the way to ensure that your integrate RF slip ring is tailored to your specifications and performance needs. Mobile base stations Satellite communications Weather radar Autonomous driving sensors Internet of Things
Specification
| ECN000-08P2-04S-02R |
Specification |
| Current & Circuits |
8 circuits * 10A; 4 circuits * Signal |
| Rating Voltage |
0 ~ 440 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@300VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-40°C~+80°C |
| Working humidity |
90 %RH |
| IP protection grade |
IP54 |
| Operating speed |
0~250rpm |
| Outer diameter |
Ø80mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Lead wire size |
As customized |
| Lead wire length |
As customized |
| High Radio frequency |
Channel 1 |
Channel 2 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Frequency range |
DC to 4.5GHz |
DC to 4.5GHz |
| Wave ratio max |
1.2 |
1.6 |
| Wave ratio floating max |
0.1 |
0.2 |
| Insertion loss max |
0.3dB |
0.5dB |
| Insertion loss wow max |
0.1dB |
0.2dB |
| Peak power |
1000w |
1000w |
| Average power |
50w @ 1GHz |
50w @ 1GHz |
Features
- Low maintenance and long life
- Low audible noise for overall quieter mechanical system operation
- High circuit density compact design
- Install easy & Free maintenance
Applications
- Wireless communications
- Satellite communications
- Weather radar
- Autonomous driving sensors
- Medical equipment
Optional
- Circuits, Voltage, Current
- Channels & connector type
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline drawing
