Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Menşe yeri Çin
Marka adı CENO
Sertifika CE,RoHS,ISO9001,UL
Model numarası ECN000-05P1-04S-01EG-01F
Ürün Ayrıntıları
Fiber optik:
5 * 5a; 4 * sinyal; 1 * Ethernet; 1 * fiber optik
Derecelendirme Gerilimi:
0 ~ 220 VAC/VDC
Dielektrik gücü:
≥1000VAC@50Hz; ≥300VAC@50Hz
izolasyon direnci:
≥500MΩ@500VDC; ≥500MΩ@500VDC; ≥100MΩ@300VDC ≥100MΩ@300VDC
Kontak direnci:
≤ 10mΩ
İletişim malzemesi:
Değerli metal
Ev materyalleri:
Alüminyum alaşımı
Çalışma sıcaklığı:
-40°C~+50°C
çalışma nemi:
%60 Bağıl Nem
IP koruma sınıfı:
IP51
Çalışma Hızı:
0~300rpm
Dış çapı:
Ø56mm
Kurşun tel boyutu ve uzunluğu:
Rica olarak
Dalga uzunluğu:
1310/1550
Kaybı ekle:
＜2dB
Geri dönüş kaybı:
＜30dB
Ekleme kaybı sapması:
＜ ± 0.5dB
Bağlantı:
FC
kurulum yolu:
flanş montajı
Ödeme ve Nakliye Şartları
Min sipariş miktarı
1 adet
Fiyat
Anlaşılabilir
Ambalaj bilgileri
Karton/istek olarak
Teslim süresi
1 Hafta
Ödeme koşulları
T/T, Paypal, Western Union
Yetenek temini
ayda 1000 adet
Ürün Tanımı

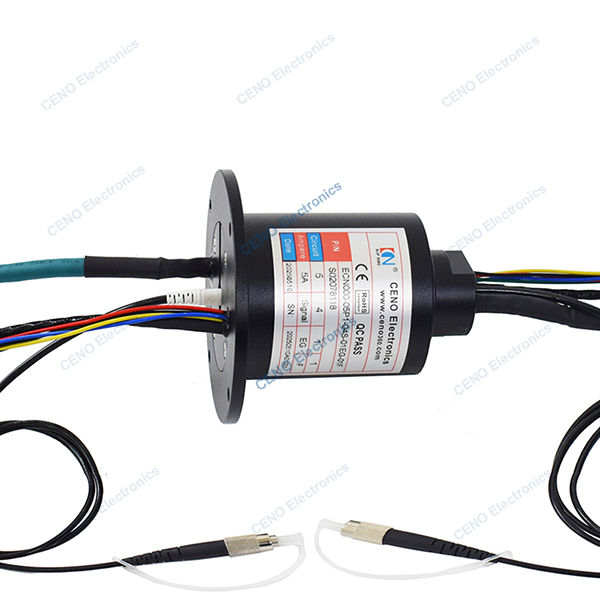

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.




Features

  • Integrate design combine power signal and fiber optic rotary joint
  • Low temperature design
  • Can be integrated various data
  • Install easy & Free maintenance


Applications

  • Robotics
  • Material conveying system
  • Radar system
  • Remote control system
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Wave length & fiber type
  • Contact / Housing Materials
  • Structure and installation
  • Working speed & temperature




Specification

ECN000-05P1-04S-01EG-01F

Specification
Current & Circuits5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic
Rating Voltage0 ~ 220 VAC/VDC
Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave≤ 10mΩ
Working temperature-40°C~+50°C
Working humidity60 %RH
IP protection gradeIP51
Operating speed0~300rpm
Outer diameterØ56mm
Contact materialPrecious Metal
Housing materialAluminum Alloy
Lead wire lengthRotor: 1000mm; Stator: 1000mm
Installation wayFlange installation
Fiber Optic
Wave length1310/1550
Insert loss＜2dB
Return loss＜30dB
Insertion loss deviation＜±0.5dB
ConnectorFC
Cable lengthStator: 700±10mm; Rotor: 1100±15mm




Outline drawing

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring 0






CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
